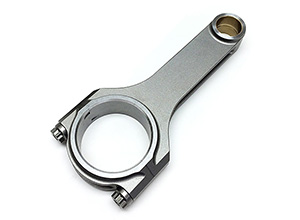

ECOBOOST - CONNECTING RODS
The EcoBoost is the latest and greatest from Ford/Mazda. Features a factory turbo, the 2.0L is derived from the Mazda L engine block used by Ford in the North American Focus MK3, but equipped with unique heads, fuel injection system, and Ford's Ti-VCT. It should not be confused with the 2.3L version of the EcoBoost engine debuted in the 2015 Lincoln MKC crossover. Based upon the 2.0L EcoBoost, the 2.3L engine produces 285 hp @ 5500 rpm, 305 lbft @ 2750 rpm. This engine is also available in the Ford Mustang EcoBoost, with power figures of 310 hp @ 5500 rpm, 320 lbft @ 3000 rpm. |
 |
 |
|
Part # |
|
Description # |
|
Qty # |
|
C-to-C |
|
BE Bore |
|
BE Width |
|
PE Bore |
|
PE Width |
|
Gram Wt |
|
Buy Now |
|
Status |
|
|
| BC6410 |
Ford/Mazda (EcoBoost 2.0L) - ProH2K w/ARP2000 Fasteners |
4 |
6.136" |
2.167" |
.860" |
.886" |
.860" |
564 |
 |
In-Stock |
|
| BC6411 |
Ford/Mazda (EcoBoost 2.0L) - ProH625+ w/ARP Custom Age 625+ Fasteners |
4 |
6.136" |
2.167" |
.860" |
.886" |
.860" |
565 |
|
In-Stock |
|
| BC6415 |
Ford/Mazda (EcoBoost 2.3L) - ProH2K w/ARP2000 Fasteners |
4 |
5.875" |
2.167" |
.860" |
.886" |
.860" |
604 |
|
In-Stock |
|
| BC6416 |
Ford/Mazda (EcoBoost 2.3L) - ProH625+ w/ARP Custom Age 625+ Fasteners |
4 |
5.875" |
2.167" |
.860" |
.886" |
.860" |
605 |
|
In-Stock |
|
|
|
|
ARP FASTENERS
BC Brian Crower is proud to feature ARP, the premier manufacturer of high quality fasteners, in every BC connecting rod. ARP rod bolts are superior to those from other manufacturer's, especially in the area of fatigue strength. Testing has shown that ARP rod bolts have ten times the fatigue strength of other fasteners. These fasteners are also available for purchase separately for replacement purposes. ARP2000 - an exclusive, hybrid alloy developed to deliver superior strength and better fatigue properties, capable of achieving a clamp load of 220,000 psi. ARP Custom Age 625+ - Newly formulated super-alloy demonstrates superior fatigue life cycle, tensile strength and toughness, with complete resistance to atmospheric corrosion and oxidation. The Custom Age is ARP's ultimate fastener, capable of achieving a clamp load of 260,000 psi.
Rod bolts are sold separately, please specify total number of bolts required when ordering. Rod bolts not for use as OEM replacement. |
 |
|
 |
Part # |
|
Description # |
|
Qty # |
|
Spec |
|
Torque |
|
Buy Now |
|
Status |
|
|
| AR8905 |
ARP2000 |
1 |
5/16" / 1.500" Under Head Length |
28-30 Ft Lbs |
|
In-Stock |
|
| AR8916 |
Custom Age 625+ |
1 |
5/16" / 1.500" Under Head Length |
33-35 Ft Lbs |
|
In-Stock |
|
| AR8900 |
ARP2000 |
1 |
3/8" / 1.600" Under Head Length |
50-55 Ft Lbs |
|
In-Stock |
|
| AR8910 |
Custom Age 625+ |
1 |
3/8" / 1.600" Under Head Length |
65-70 Ft Lbs |
|
In-Stock |
|
| AR8901 |
ARP2000 |
1 |
7/16" / 1.600" Under Head Length |
75-80 Ft Lbs |
|
In-Stock |
|
| AR8918 |
Custom Age 625+ |
1 |
7/16" / 1.600" Under Head Length |
90-95 Ft Lbs |
|
In-Stock |
|
|
|
|
CONNECTING ROD BUSHINGS
BC Brian Crower connecting rod bushings are available for purchase as replacements to existing bushings that come installed in all new BC connecting rods. Manufactured from Aluminum/Silicone/Bronze material. Bushings are one piece billet and are sold separately as one only units.
Replacement rod bushings are sold as a one only unit, please specify total number of bushings required when ordering. |
 |
|
|
Part # |
|
Description # |
|
Qty # |
|
Buy Now |
|
Status |
|
|
| BC8700 |
.787"/20mm |
1 |
|
In-Stock |
|
| BC8701 |
.827"/21mm |
1 |
|
In-Stock |
|
| BC8702 |
.866"/22mm |
1 |
|
In-Stock |
|
| BC8703 |
.905"/23mm |
1 |
|
In-Stock |
|
|
