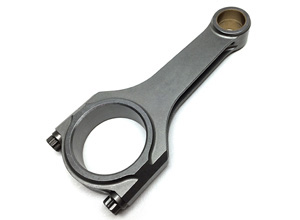

1.8T - CONNECTING RODS
Available in two different ARP fastener/rod bolt configurations. The ProH2K rod incorporates every feature of the premier ProH625+ rod, only that the fasteners have been changed to the more economical, yet venerable ARP2000 bolt, rated to 220,000 p.s.i. The ProH2K is rated in excess of 150HP per cylinder and priced for the everyday performance buff. The ProH625+ features ARP's top of the line Custom Age 625+ fasteners, rated to 280,000 p.s.i., for the ultimate clamping capability and peace of mind at extended HP (200+ per cylinder) and RPM ranges. |
 |
|
Part # |
|
Description # |
|
Qty # |
|
C-to-C |
|
BE Bore |
|
BE Width |
|
PE Bore |
|
PE Width |
|
Gram Wt |
|
Buy Now |
|
Status |
|
|
| BC6709 |
VW/Audi (1.8T) - ProH2K w/ARP2000 Fasteners |
4 |
5.670" |
1.992" |
.980" |
.787" |
.980" |
565 |
 |
In-Stock |
|
| BC6708 |
VW/Audi (1.8T) – ProH625+ w/Custom Age 625+ Fasteners |
4 |
5.670" |
1.992" |
.980" |
.787" |
.980" |
570 |
|
In-Stock |
|
|
|
|
ARP FASTENERS
BC Brian Crower is proud to feature ARP, the premier manufacturer of high quality fasteners, in every BC connecting rod. ARP rod bolts are superior to those from other manufacturer's, especially in the area of fatigue strength. Testing has shown that ARP rod bolts have ten times the fatigue strength of other fasteners. These fasteners are also available for purchase separately for replacement purposes. ARP2000 - an exclusive, hybrid alloy developed to deliver superior strength and better fatigue properties, capable of achieving a clamp load of 220,000 psi. ARP Custom Age 625+ - Newly formulated super-alloy demonstrates superior fatigue life cycle, tensile strength and toughness, with complete resistance to atmospheric corrosion and oxidation. The Custom Age is ARP's ultimate fastener, capable of achieving a clamp load of 260,000 psi.
Rod bolts are sold separately, please specify total number of bolts required when ordering. Rod bolts not for use as OEM replacement. |
 |
|
 |
Part # |
|
Description # |
|
Qty # |
|
Spec |
|
Torque |
|
Buy Now |
|
Status |
|
|
| AR8905 |
ARP2000 |
1 |
5/16" / 1.500" Under Head Length |
28-30 Ft Lbs |
|
In-Stock |
|
| AR8916 |
Custom Age 625+ |
1 |
5/16" / 1.500" Under Head Length |
33-35 Ft Lbs |
|
In-Stock |
|
| AR8900 |
ARP2000 |
1 |
3/8" / 1.600" Under Head Length |
50-55 Ft Lbs |
|
In-Stock |
|
| AR8910 |
Custom Age 625+ |
1 |
3/8" / 1.600" Under Head Length |
65-70 Ft Lbs |
|
In-Stock |
|
| AR8901 |
ARP2000 |
1 |
7/16" / 1.600" Under Head Length |
75-80 Ft Lbs |
|
In-Stock |
|
| AR8918 |
Custom Age 625+ |
1 |
7/16" / 1.600" Under Head Length |
90-95 Ft Lbs |
|
In-Stock |
|
|
|
|
CONNECTING ROD BUSHINGS
BC Brian Crower connecting rod bushings are available for purchase as replacements to existing bushings that come installed in all new BC connecting rods. Manufactured from Aluminum/Silicone/Bronze material. Bushings are one piece billet and are sold separately as one only units.
Replacement rod bushings are sold as a one only unit, please specify total number of bushings required when ordering. |
 |
|
|
Part # |
|
Description # |
|
Qty # |
|
Buy Now |
|
Status |
|
|
| BC8700 |
.787"/20mm |
1 |
|
In-Stock |
|
| BC8701 |
.827"/21mm |
1 |
|
In-Stock |
|
| BC8702 |
.866"/22mm |
1 |
|
In-Stock |
|
| BC8703 |
.905"/23mm |
1 |
|
In-Stock |
|
|
