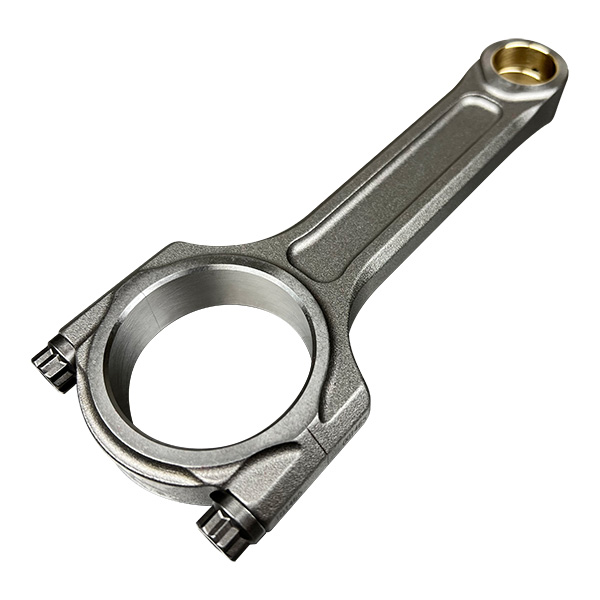

K24A - PRO TITANIUM I-BEAM CONNECTING RODS
The BC Pro I-Beam Titanium rods are designed for road race, circle track and circuit course applications where getting the rpm’s down quickly on corner entry and that snappy throttle response on corner exit are paramount to faster lap times. Made from aerospace grade, 6AL4V titanium, these rods deliver the strength characteristics of our standard weight ProH2K steel design deliver but at 33% of the overall weight. Titanium alloy is effective for for higher power output compared to steel because the titanium connecting rod enables to reduce the weight of both of reciprocating and rotating parts in an entire engine substantially. Every rod is CNC machined, micropolished surface finish treatment, equipped with AMPCO-45 pin bushings and finish honed to exacting tolerances. |
 |
|
Part # |
|
Description # |
|
Qty # |
|
C-to-C |
|
BE Bore |
|
BE Width |
|
PE Bore |
|
PE Width |
|
Gram Wt |
|
Buy Now |
|
Status |
|
|
| BC6047T |
Honda/Acura K24A - Titanium I-Beam w/ARP2000 Fasteners |
4 |
5.985" |
2.008" |
.780" |
.866" |
.780" |
402 |
 |
In-Stock |
|
|
|
K20A / K24 ProH625+ Connecting Rods
The ProH625+ rod from BC is the premier industry connecting rod. Made from aerospace grade 4340 steel, the ProH625+ utilizes every strength and benefit feature ever assembled in a connecting rod design. Incorporating ARP's ultimate fastener, the Custom Age 625+, rated to 280,000 p.s.i., the ProH625+ delivers the ultimate clamping ability at high horsepower and rpm. This rod is intended for the true hardcore enthusiast and racer and is rated in excess of 250+HP per cylinder. |
 |
|
|
Part # |
|
Description # |
|
Qty # |
|
C-to-C |
|
BE Bore |
|
BE Width |
|
PE Bore |
|
PE Width |
|
Gram Wt |
|
Buy Now |
|
Status |
|
|
| BC6044 |
Honda/Acura K20A2, Z3 - ProH625+ w/ARP Custom Age 625+ Fasteners |
4 |
5.473" |
2.008" |
.780" |
.866" |
.780" |
515 |
|
In-Stock |
|
| BC6045 |
Honda/Acura K24 - ProH625+ w/ARP Custom Age 625+ Fasteners |
4 |
5.985" |
2.008" |
.780" |
.866" |
.780" |
537 |
|
Out of Stock |
|
|
|
|
K20A / K24 ProH2K Connecting Rods
The ProH2K incorporates every feature of the premier ProH625+ connecting rod...same material, same CNC programming, same pin oilers, same double ribbed cap, same everything...except the fasteners. The ProH2K utilizes the more economical, yet venerable ARP2000 rod bolts, rated to 220,000 p.s.i. The ProH2K is rated in excess of 200HP per cylinder and priced for the everyday performance enthusiast who isn't going to the moon. |
 |
|
|
Part # |
|
Description # |
|
Qty # |
|
C-to-C |
|
BE Bore |
|
BE Width |
|
PE Bore |
|
PE Width |
|
Gram Wt |
|
Buy Now |
|
Status |
|
|
| BC6041 |
Honda/Acura K20A2, Z3 - ProH2K w/ARP2000 Fasteners |
4 |
5.473" |
2.008" |
.780" |
.866" |
.780" |
514 |
|
In-Stock |
|
| BC6051 |
Honda/Acura K20A2, Z3 - LightWeight ProH2K w/ARP2000 Fasteners - 400whp MAX |
4 |
5.473" |
2.008" |
.780" |
.866" |
.780" |
430 |
|
Out of Stock |
|
| BC6042 |
Honda/Acura K24 - ProH2K w/ARP2000 Fasteners |
4 |
5.985" |
2.008" |
.780" |
.866" |
.780" |
535 |
|
Out of Stock |
|
| BC6052 |
Honda/Acura K24 - LightWeight ProH2K w/ARP2000 Fasteners - 400whp MAX |
4 |
5.985" |
2.008" |
.780" |
.866" |
.780" |
457 |
|
Out of Stock |
|
| BC6049 |
Honda/Acura K24 for B18A Rod Journals - ProH2K w/ARP2000 Fasteners |
4 |
5.985" |
1.890" |
.935" |
.866" |
.935" |
530 |
|
In-Stock |
|
| BC6059 |
Honda/Acura K24 for B18A Journals - LightWeight ProH2K w/ARP2000 - 400whp MAX |
4 |
5.985" |
1.890" |
.935" |
.866" |
.935" |
450 |
|
In-Stock |
|
|
|
|
K20A / K24A - Pro MidWeight I-Beam Connecting Rods
The Pro MidWeight is rated to 125HP per cylinder, making it the perfect choice when 400 to 500 HP is the end goal. LightWeight profiling around the pin end as well as tapered milling in the beam pockets, make this rod the ultimate “All Motor” performer. Features 3/8” ARP2000 fasteners rated to 220,000 p.s.i. |
 |
|
|
Part # |
|
Description # |
|
Qty # |
|
C-to-C |
|
BE Bore |
|
BE Width |
|
PE Bore |
|
PE Width |
|
Gram Wt |
|
Buy Now |
|
Status |
|
|
| BC6054 |
Honda/Acura K20A - MidWeight I-Beam w/ARP2000 Fasteners - 500whp MAX |
4 |
5.473" |
2.008" |
.780" |
.866" |
.780" |
479 |
|
In-Stock |
|
| BC6055 |
Honda/Acura K24A - MidWeight I-Beam w/ARP2000 Fasteners - 500whp MAX |
4 |
5.985" |
2.008" |
.780" |
.866" |
.780" |
488 |
|
In-Stock |
|
|
|
|
K24 "MOAR" I-BEAM CONNECTING RODS
The "MOAR" (Mother Of All Rods) Series connecting rod from Brian Crower is what a connecting rod would look like when taking input from the top engine builders and tuners in the industry. The MOAR Series is approximately 70 grams heavier than the industry proven ProH Series design. The I-Beam design allows added beam to cylinder wall clearance for stroker applications. Radiused edges for added rigidity, Available in choice of ARP2000 or ARP Custom Age 625+ fasteners for premium clamping ability, added material near the pin end to insure true pin end roundness. Rated to 300whp per cylinder. |
 |
|
|
Part # |
|
Description # |
|
Qty # |
|
C-to-C |
|
BE Bore |
|
BE Width |
|
PE Bore |
|
PE Width |
|
Gram Wt |
|
Buy Now |
|
Status |
|
|
| BC6047 |
Honda K24 - MOAR I-Beam w/ARP2000 Fasteners |
4 |
5.985" |
2.008" |
0.780" |
.866" |
0.780" |
653 |
|
In-Stock |
|
| BC6046 |
Honda K24 - MOAR I-Beam w/ARP Custom Age 625+ Fasteners |
4 |
5.985" |
2.008" |
0.780" |
.866" |
0.780" |
655 |
|
In-Stock |
'
|
| BC6043 |
Honda K24 - MOAR I-Beam w/ARP2000 - Destroker for 92mm Stroke, rated 800+whp |
4 |
6.050" |
1.890" |
0.935" |
.866" |
0.935" |
698 |
|
In-Stock |
'
|
| BC6043-UPG |
Honda K24 - MOAR I-Beam w/ARP625+ - Destroker for 92mm Stroke, rated 1000+whp |
4 |
6.050" |
1.890" |
0.935" |
.866" |
0.935" |
699 |
|
In-Stock |
|
|
|
|
K20C1- PRO-HD CONNECTING RODS
4340 steel billet rods for the Honda Civic Type R (17-up). The ProH2K incorporates every feature of the premier ProH625+ connecting rod...same material, same CNC programming, same pin oilers, same double ribbed cap, same everything...except the fasteners. The ProH2K utilizes the more economical, yet venerable ARP2000 rod bolts, rated to 220,000 p.s.i. The ProH2K is rated in excess of 200HP per cylinder. The ProH625+ rod from BC is the premier industry connecting rod. Made from aerospace grade 4340 steel, the ProH625+ utilizes every strength and benefit feature ever assembled in a connecting rod design. Incorporating ARP's ultimate fastener, the Custom Age 625+, rated to 280,000 p.s.i., the ProH625+ delivers the ultimate clamping ability at high horsepower and rpm. This rod is intended for the true hardcore enthusiast and racer and is rated in excess of 250+HP per cylinder. |
|
|
|
Part # |
|
Description # |
|
Qty # |
|
C-to-C |
|
BE Bore |
|
BE Width |
|
PE Bore |
|
PE Width |
|
Gram Wt |
|
Buy Now |
|
Status |
|
|
| BC6079 |
Honda K20C1 (Civic Type R) - ProH2K w/ARP2000 Fasteners |
4 |
5.656" |
2.008" |
.782" |
.866" |
.782" |
544 |
|
In-Stock |
|
| BC6078 |
Honda K20C1 (Civic Type R) - ProH625+ w/ARP625+ Fasteners |
4 |
5.656" |
2.008" |
.782" |
.866" |
.782" |
543 |
|
In-Stock |
|
|
|
|
ARP FASTENERS
BC Brian Crower is proud to feature ARP, the premier manufacturer of high quality fasteners, in every BC connecting rod. ARP rod bolts are superior to those from other manufacturer's, especially in the area of fatigue strength. Testing has shown that ARP rod bolts have ten times the fatigue strength of other fasteners. These fasteners are also available for purchase separately for replacement purposes. ARP2000 - an exclusive, hybrid alloy developed to deliver superior strength and better fatigue properties, capable of achieving a clamp load of 220,000 psi. ARP Custom Age 625+ - Newly formulated super-alloy demonstrates superior fatigue life cycle, tensile strength and toughness, with complete resistance to atmospheric corrosion and oxidation. The Custom Age is ARP's ultimate fastener, capable of achieving a clamp load of 260,000 psi.
Rod bolts are sold separately, please specify total number of bolts required when ordering. Rod bolts not for use as OEM replacement. |
 |
|
 |
Part # |
|
Description # |
|
Qty # |
|
Spec |
|
Torque |
|
Buy Now |
|
Status |
|
|
| AR8905 |
ARP2000 |
1 |
5/16" / 1.500" Under Head Length |
28-30 Ft Lbs |
|
In-Stock |
|
| AR8916 |
Custom Age 625+ |
1 |
5/16" / 1.500" Under Head Length |
33-35 Ft Lbs |
|
In-Stock |
|
| AR8900 |
ARP2000 |
1 |
3/8" / 1.600" Under Head Length |
50-55 Ft Lbs |
|
In-Stock |
|
| AR8910 |
Custom Age 625+ |
1 |
3/8" / 1.600" Under Head Length |
65-70 Ft Lbs |
|
In-Stock |
|
| AR8901 |
ARP2000 |
1 |
7/16" / 1.600" Under Head Length |
75-80 Ft Lbs |
|
In-Stock |
|
| AR8918 |
Custom Age 625+ |
1 |
7/16" / 1.600" Under Head Length |
90-95 Ft Lbs |
|
In-Stock |
|
|
|
|
CONNECTING ROD BUSHINGS
BC Brian Crower connecting rod bushings are available for purchase as replacements to existing bushings that come installed in all new BC connecting rods. Manufactured from Aluminum/Silicone/Bronze material. Bushings are one piece billet and are sold separately as one only units.
Replacement rod bushings are sold as a one only unit, please specify total number of bushings required when ordering. |
 |
|
|
Part # |
|
Description # |
|
Qty # |
|
Buy Now |
|
Status |
|
|
| BC8700 |
.787"/20mm |
1 |
|
In-Stock |
|
| BC8701 |
.827"/21mm |
1 |
|
In-Stock |
|
| BC8702 |
.866"/22mm |
1 |
|
In-Stock |
|
| BC8703 |
.905"/23mm |
1 |
|
In-Stock |
|
|
